Tomioka Billet Ball Bearing TD05-GT28 Turbo - Fits Subaru WRX 2008-2014 - Legacy GT 2005-2009 - Forester XT 2008-2013 - More

Tomioka Billet Ball Bearing TD05-GT28 Turbo - Fits Subaru WRX 2008-2014 - Legacy GT 2005-2009 - Forester XT 2008-2013 - More

Regular price $1,895.00 USD
Regular price Sale price $1,895.00 USD
Sale Sold out

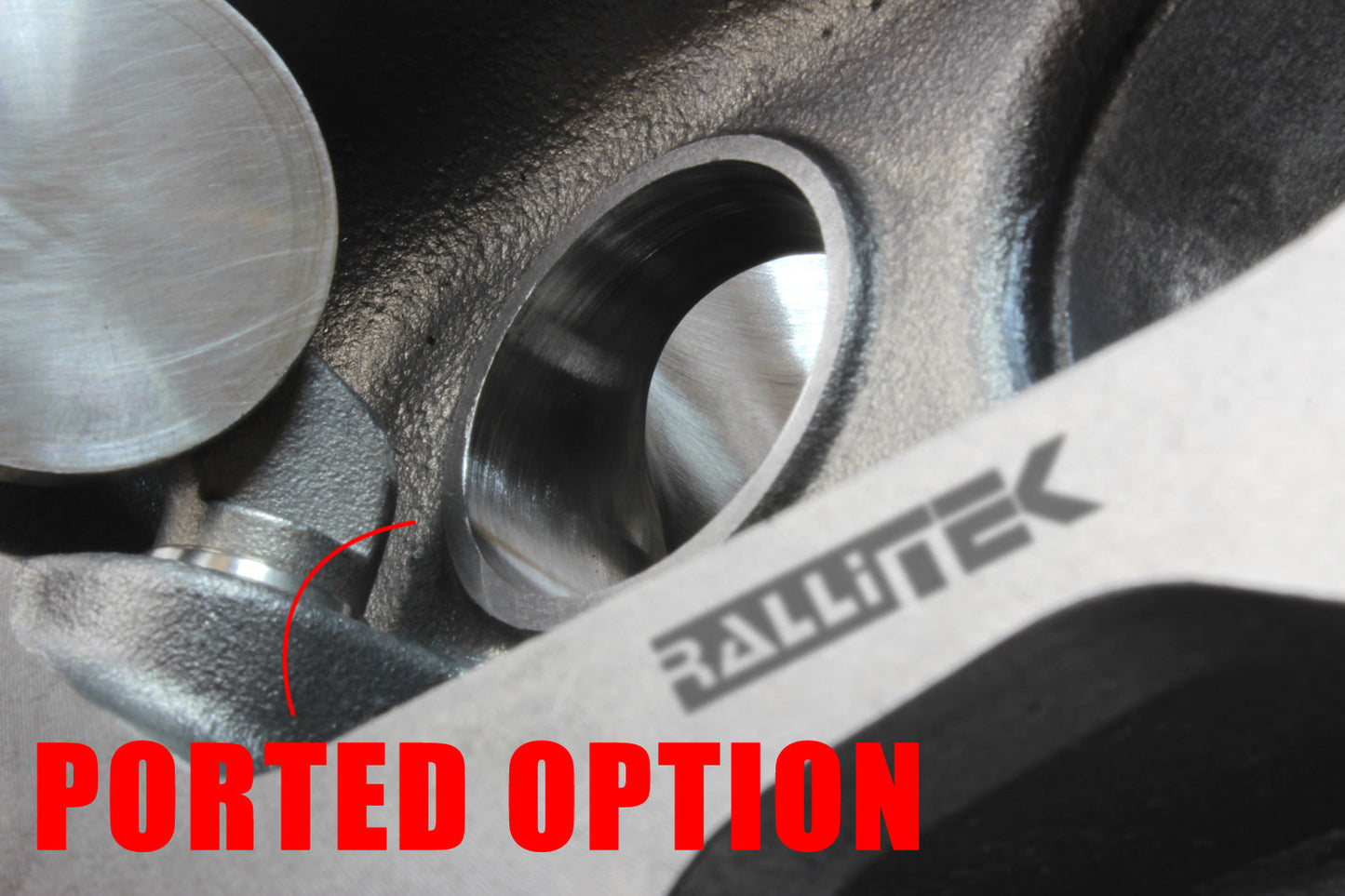

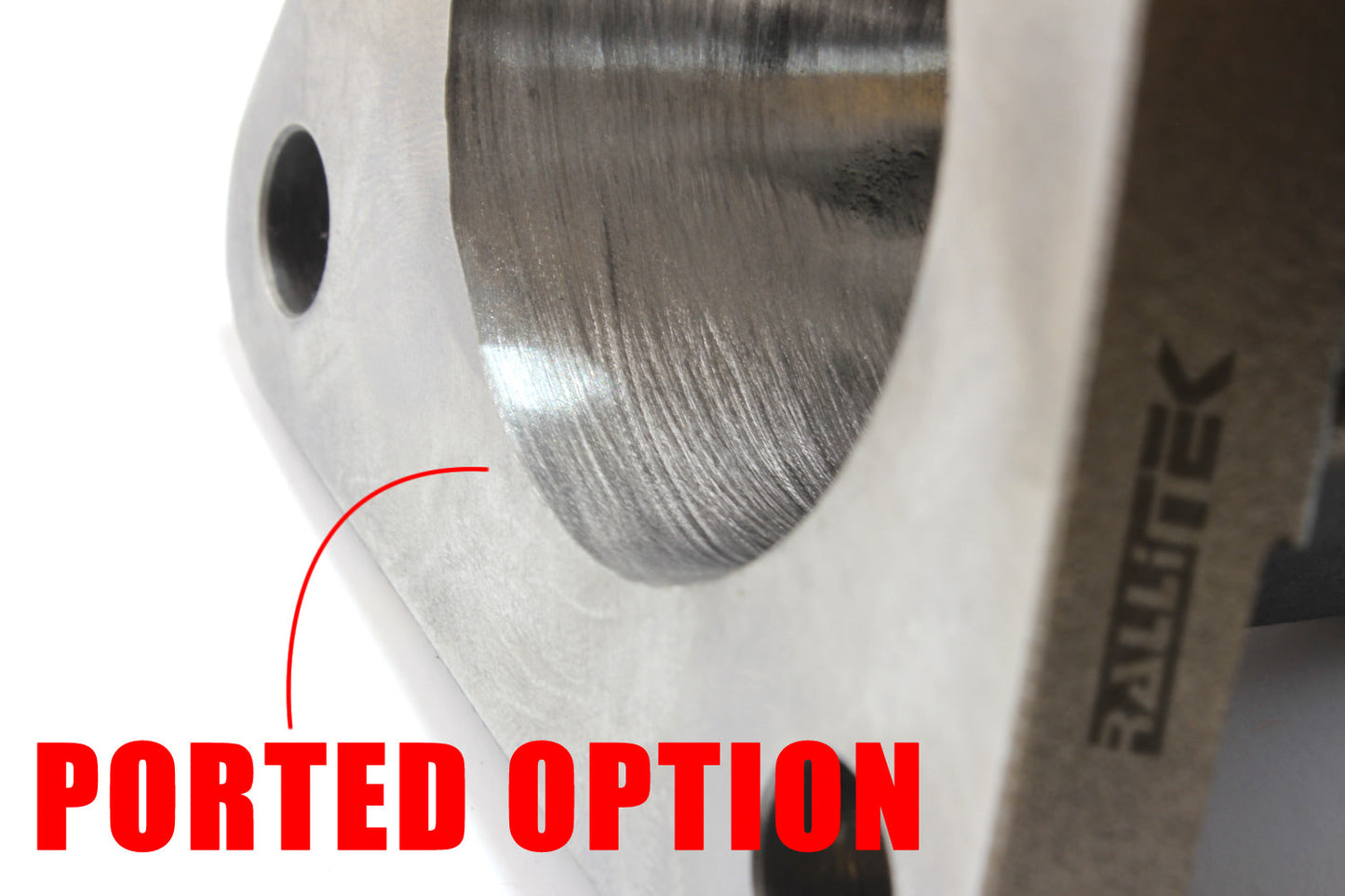

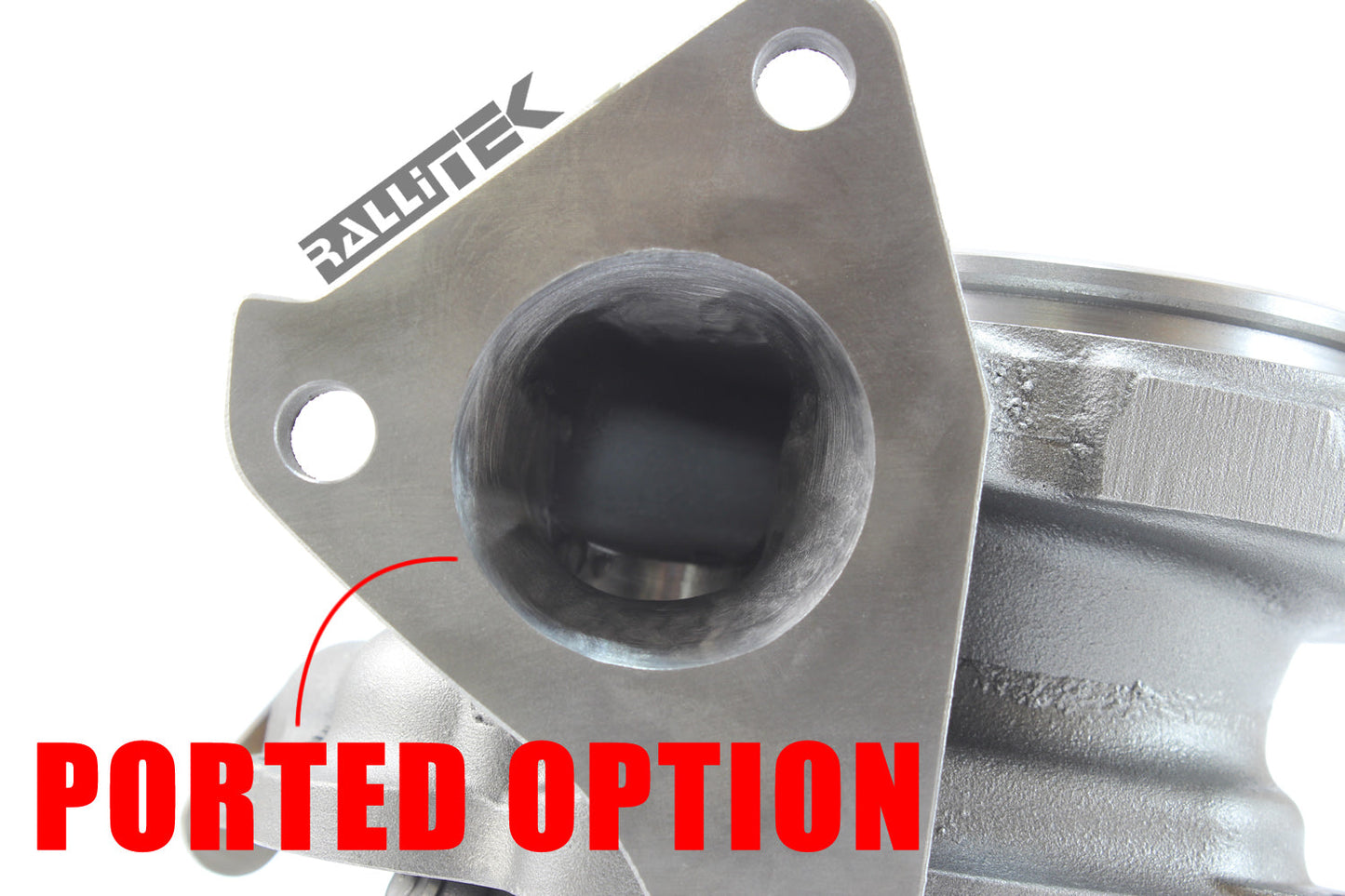

Porting Service

The combination of a TD05 housing and a ball-bearing CHRA results in the Tomioka Racing Hybrid TD05-GT28 Ball Bearing turbocharger. Using genuine Garret Ball Bearing technology and their own billet compressor wheel, Tomioka has created a stock-location, medium-frame ball-bearing turbocharger for the Subaru WRX 2008 – 2013 & Legacy GT 2006 - 2008. The Hybrid TD05-GT28 turbo is perfect for those who are looking for a quickly and smoothly spooling turbo for the EJ engine. Each Turbo comes with a billet wastegate actuator with a 1.3 bar actuator spring. All necessary fittings and gaskets are included in this turbo.


Expect a shipping delay of up to 3 days if the ported option is selected during purchase.

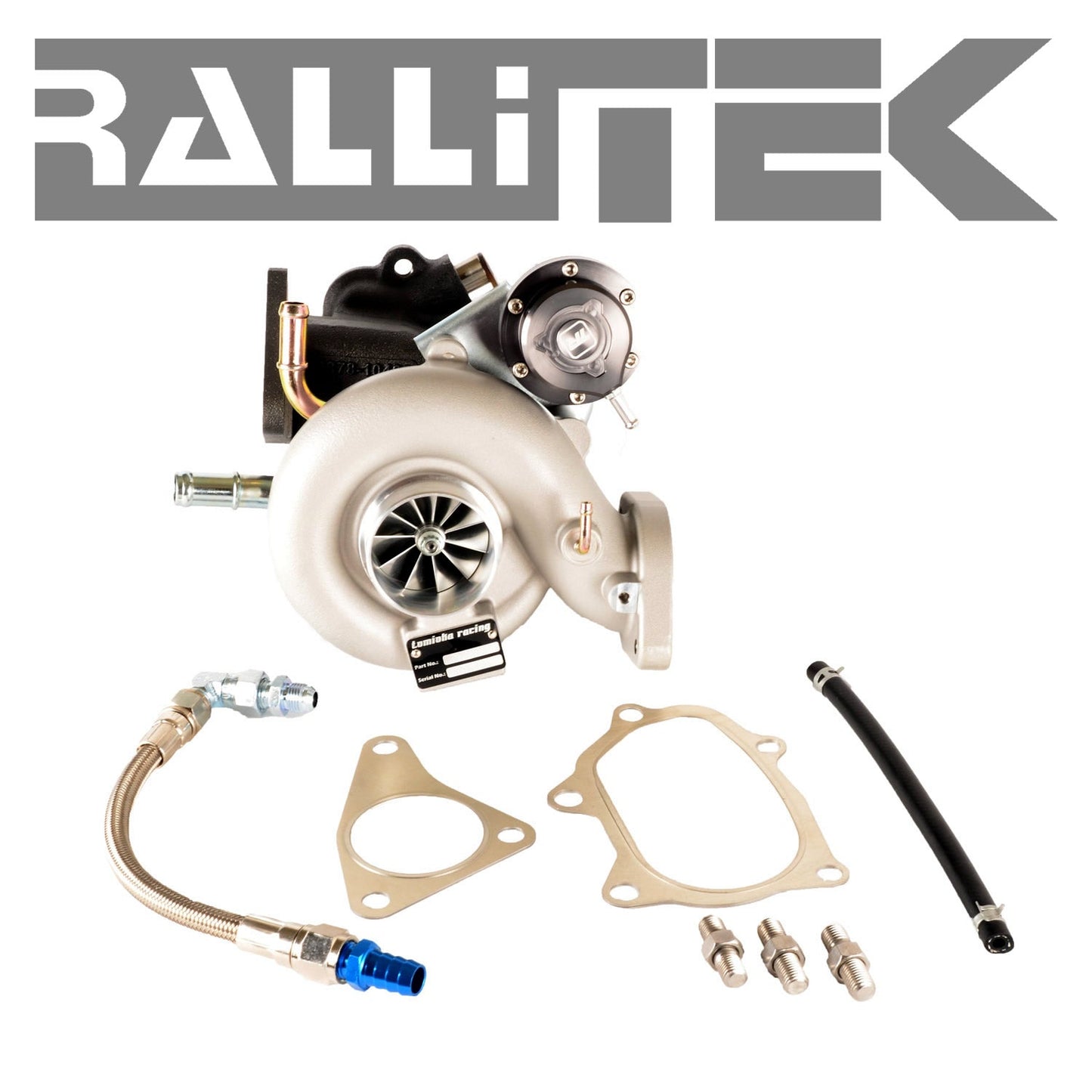

Kit Contents:

  • Turbocharger
  • Actuator
  • Oil Pipe
  • Water Pipe
  • Gaskets
  • Hardware Kit


  • Genuine Garrett Ball Bearing
  • Billet Compressor Wheel
  • Billet Wastegate Actuator
  • Stock Location

 Turbo Characteristics:

Bearing Type: Ball Bearing
Flange Type: Standard Subaru 5-Bolts
Compressor Wheel In: 53.9 mm
Ex: 71 mm

Turbine Wheel

In: 53.9 mm
Ex: 76 mm
Actuator: 1.3 Bar / 19 psi
Turbine Housing: 8 cm2
Max. Power: 480 HP


TR complete bolt-on turbo kits are ideal for wide range of tuning from stock engines to those which have had upgraded internals.


Using experiences learned on the track and feedback from other tuners, TR development in turbo technology has allowed us to provide turbo kit solutions for users who require smooth power delivery for the street and enjoyable sport driving. These turbo kits have been designed to offer a boost in power without sacrificing the response found in stock turbos and provide extra performance and without additional cost.
