Mishimoto Oil Cooler Kit - Fits Subaru STI 2008-2014

Mishimoto Oil Cooler Kit - Fits Subaru STI 2008-2014

SKU:MISH-MMOC-STI-08

Regular price $614.30 USD
Regular price Sale price $614.30 USD
Sale Sold out
Shipping calculated at checkout.
Color
Thermostatic Sandwich Plate

The Subaru WRX STI provides a great balance of power, handling, and reliability. As with any vehicle, controlling fluid temperatures will ensure consistent power and engine longevity. The Mishimoto Subaru WRX STI Oil Cooler Kit is a great addition to any street or track STI. A large 19-row cooler mounts in the front bumper to provide optimal airflow and cooling efficiency. The included direct-fit mounting brackets and preassembled stainless steel lines with -10AN fittings will ensure an easy and hassle-free installation.

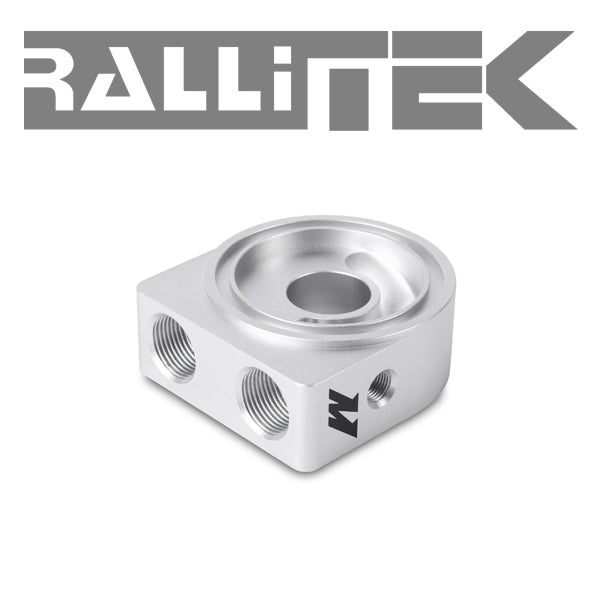

This cooler is proven to reduce oil temperatures by 20+°F (16+°C) degrees while maintaining minimal pressure loss. For further heat protection this kit includes thermal reflective wrap for the oil lines, providing substantial heat deflection from the nearby exhaust. The Mishimoto Subaru WRX STI Oil Cooler Kit can be customized to meet your needs with either a Stealth Black or Sleek Silver cooler and your choice of the Mishimoto Oil Sandwich Plateor the Mishimoto Thermostatic Oil Sandwich Plate. As with all our products, this kit includes the Mishimoto Lifetime Warranty.

INCREASE IN OIL CAPACITY
0.65 Quarts (0.615L)

PRESSURE DROP
3-4 PSI

ENGINE CODES
EJ257

CHASSIS CODES
GR
GV

TEMPERATURE DIFFERENCE
20+°F (16+°C)

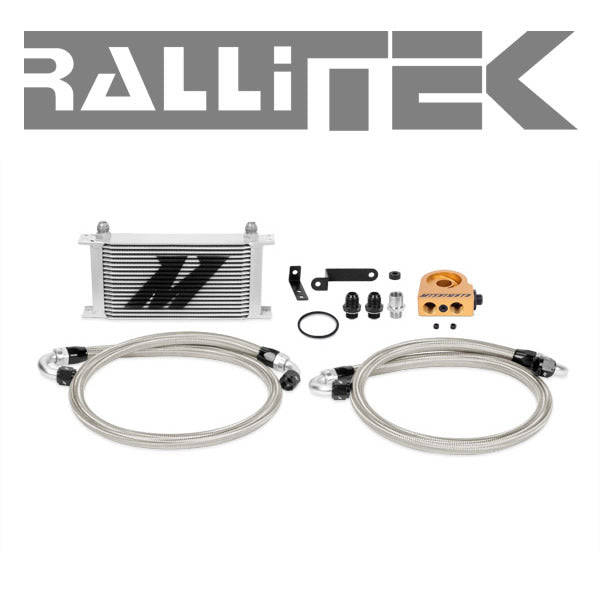

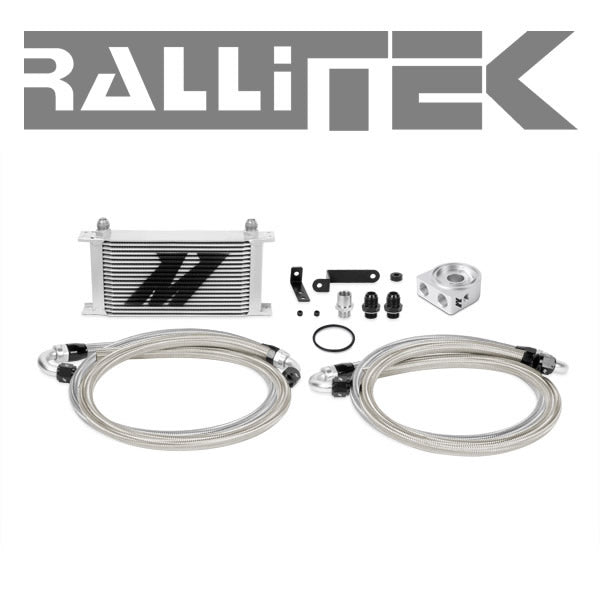

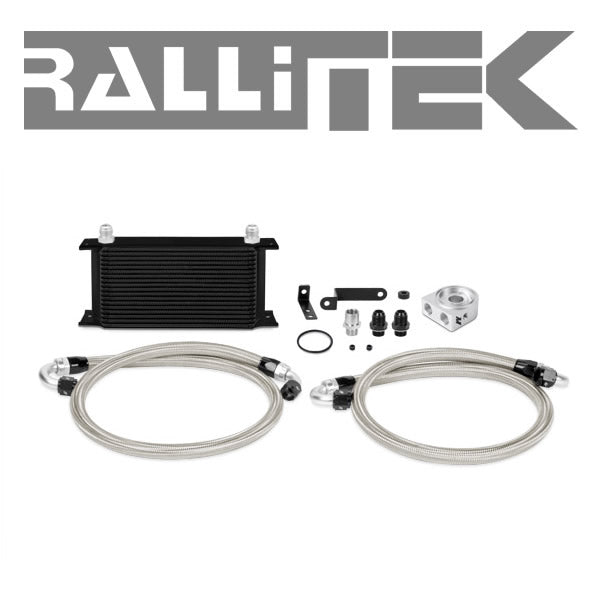

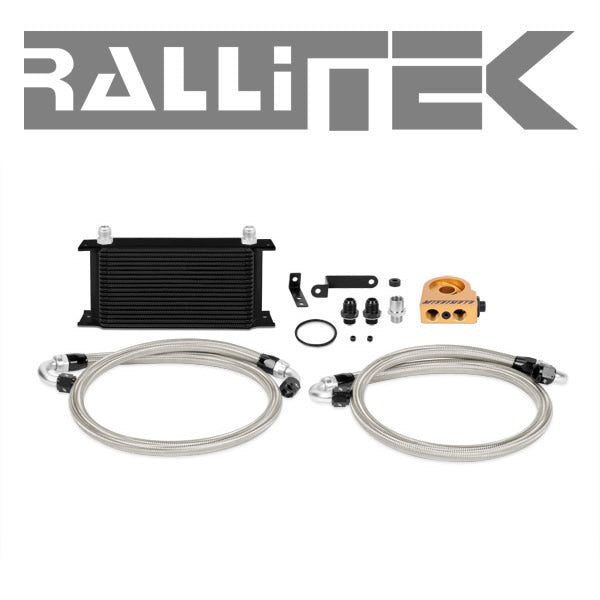

PURCHASE INCLUDES

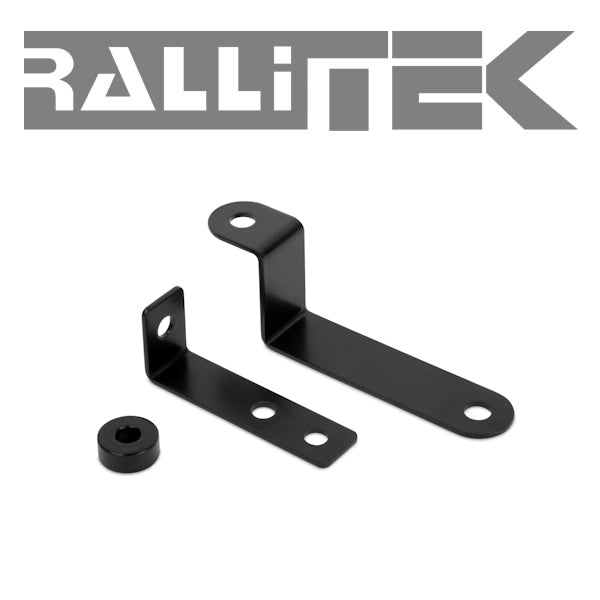

(3) – Application Specific Mounting Brackets

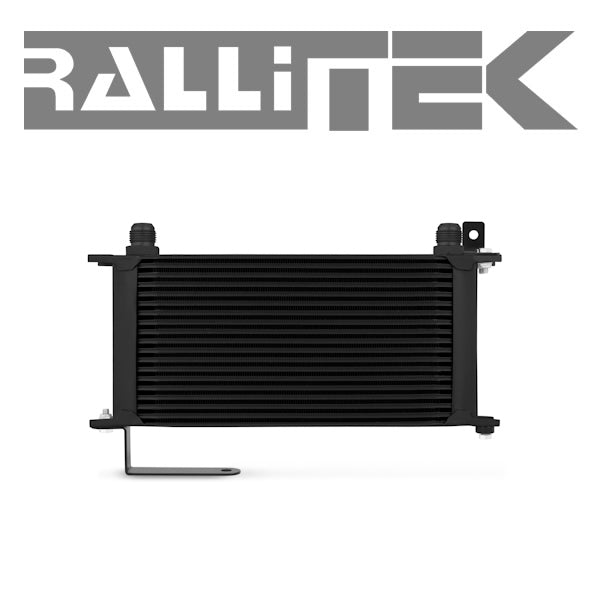

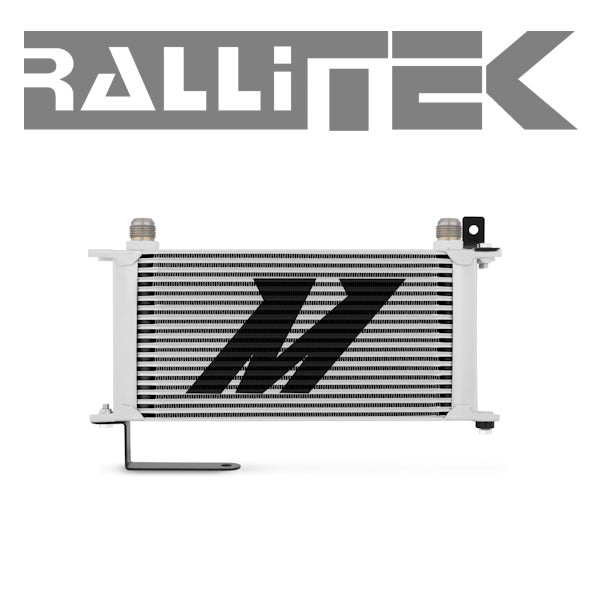

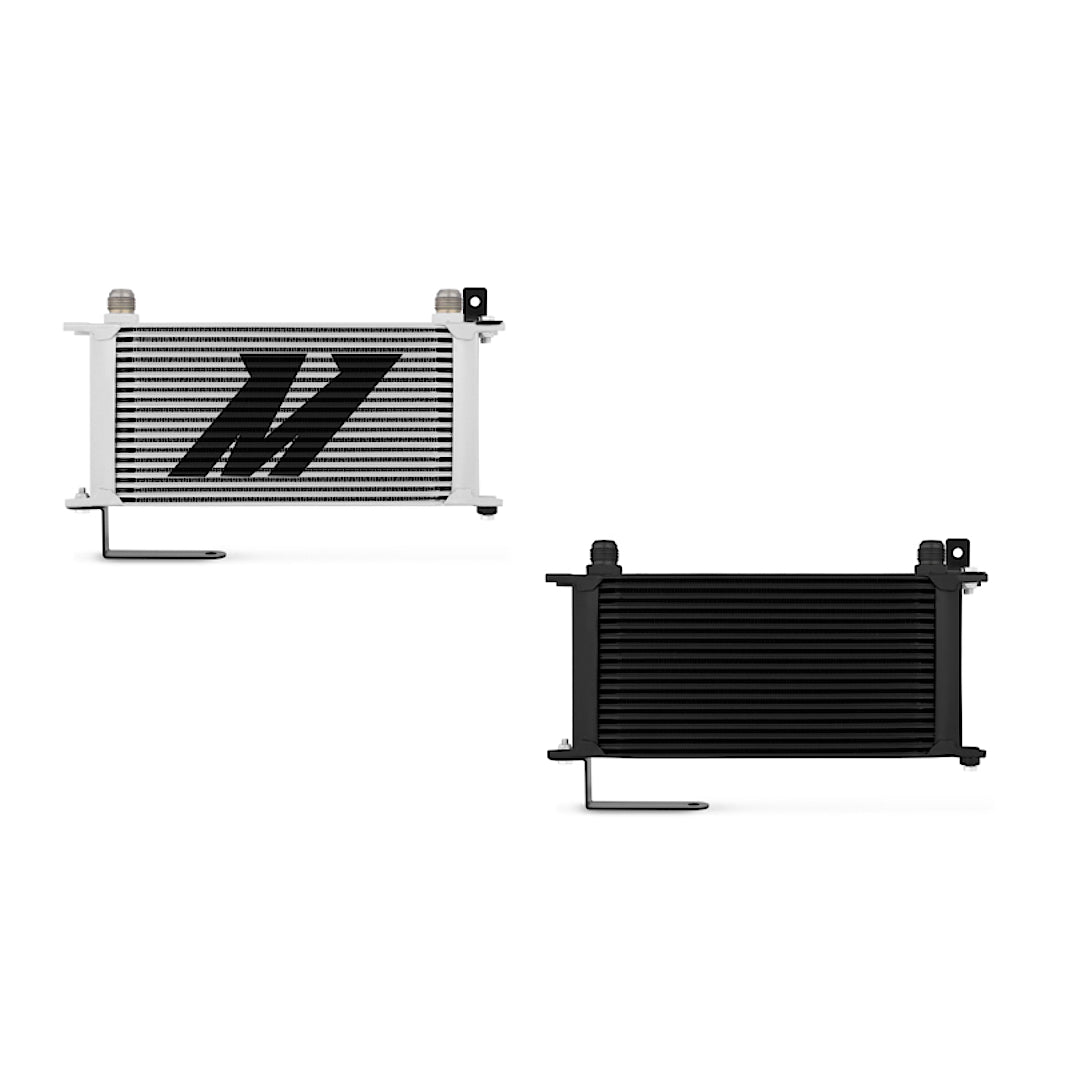

(1) – 19-Row Oil Cooler (silver or black)

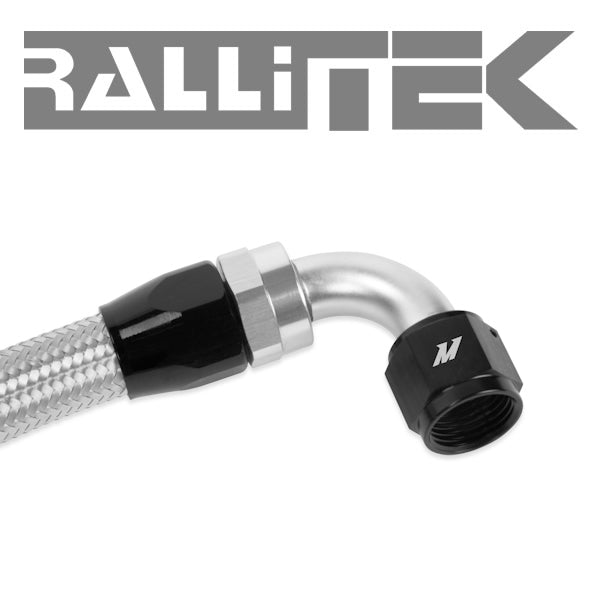

(1) – 3ft, 6in Stainless Steel Braided Hose with 150-degree -10AN Fittings
(1) – 4ft Stainless Steel Braided Hose with 90-degree and 150-degree -10AN Fittings

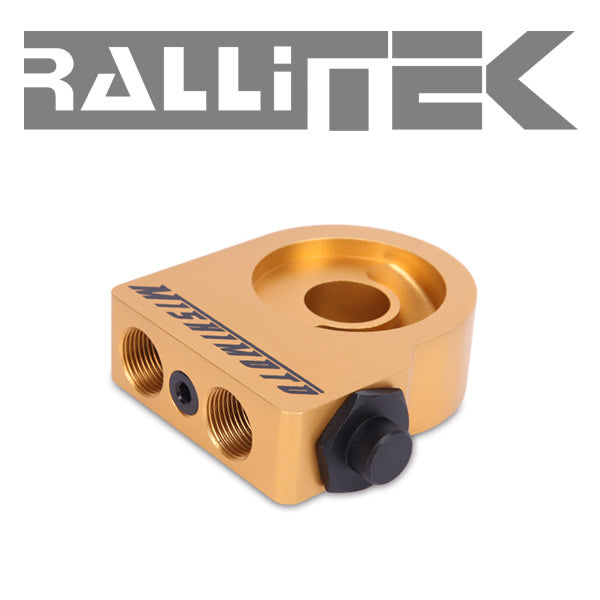

(1) – M20 Thermostatic Sandwich Plate (Non-Thermostatic Available)

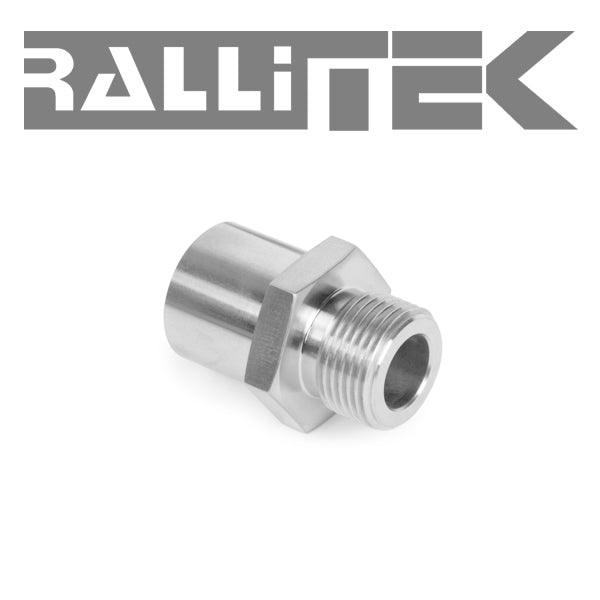

(1) – M20 Stainless Steel Sandwich Plate Adapter

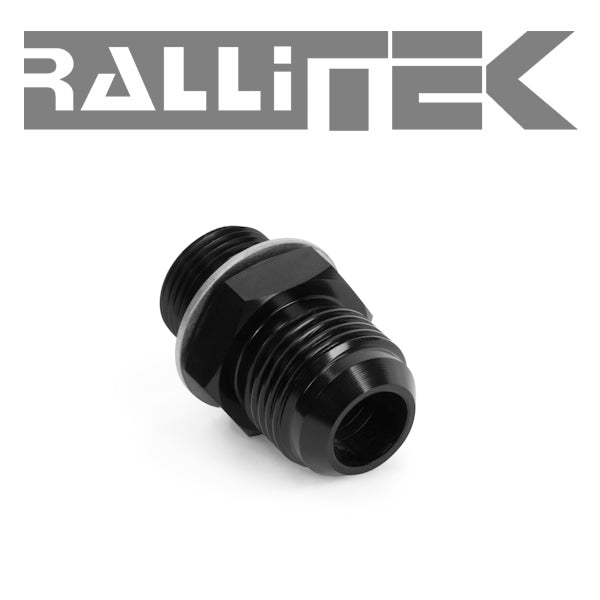

(2) – M20 x -10AN Straight Fittings

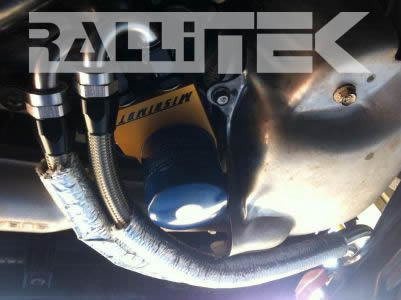

(1) – 2ft of thermal reflective wrap
(1) – Mounting Hardware Set
NOTE
This oil cooler kit will only work with models with the single scroll turbo and un-equal length exhaust manifold. Models with a twin scroll turbo and equal length exhaust manifold may not be compatible with this oil cooler kit. Recommended torque specification for all straight fittings and banjo bolts: 15-25 ft/lbs (operating range). Do not exceed the maximum torque rating of 35 ft/lbs.
This oil cooler kit retains the use of your stock liquid to liquid oil cooler unit

FOR STI INSTALLATION
Refer to final picture for proper STI hose routing as this differs from the WRX.

CAUTION
It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact sales@mishimoto.com.





View full details

Collapsible content

What's in the Box

Warranty Information

RalliTEK BRANDED PRODUCTS LIFETIME WARRANTY

RalliTEK branded products are warranted to the original owner against manufacturing defects in materials and workmanship for the lifetime of the product.

If a RalliTEK branded product covered by this warranty fails due to a manufacturing defect we will repair the product, without charge, or replace it at our discretion. This policy covers only original, unaltered, and unmodified materials and workmanship. This warranty does not cover damage caused by incorrect installation, accident, improper care, negligence, normal wear and tear, or the natural breakdown of colors and materials over extended time and use. Damage not covered under warranty may be repaired for a reasonable rate and a fee will be charged for return shipping.

No payment or reimbursement shall be made for installation, removal, transportation, or other charges. The remedies outlined in this instrument are exclusive and the liability of RalliTEK with respect to any sale shall not exceed the price of the product on which the liability is based.

For warranty evaluation, please contact RalliTEK Customer Service at (503) 619.0055 or info@rallitek.com to obtain a return authorization. Once this step has been completed, your product must be returned directly to the RalliTEK Warranty Department, 13339 NE Airport Way, Suite 500, Portland, OR 97230. All shipping to the Warranty Department must be pre-paid and insured. RalliTEK will not be liable for damaged or lost inbound packages.

      NOTE: This warranty is only available within the United States or Canada

  • This warranty gives you specific legal rights; you may have other rights, which vary from state to state.
  • This warranty does not cover products sold by RalliTEK that are not RalliTEK branded products.

The RalliTEK website sells discontinued, special markup, and slightly blemished products at significant discounts as 'factory seconds' products. This warranty does not automatically cover products purchased as factory seconds. RalliTEK reserves the right to determine if any warranty applies on a case-by-case basis for factory second parts. If approved, the RalliTEK Warranty Department may repair factory second products for a reasonable charge and applicable shipping charges.

MANUFACTURER WARRANTIES (FOR NON-RALLITEK BRANDED PRODUCTS)

Non-RalliTEK branded products do not have any written or implied warranties. Products on RalliTEK.com are sold with the warranty applied directly from the manufacturer. The customer must contact the product brand manufacturer for any warranty details. All products sold by RalliTEK are intended for off-road and/or race use only, as suggested by the manufacturer, and should be installed and set up by professional service centers only. RalliTEK is not responsible for any product failure or failure due to installation. Should a warranty claim arise, the customer and the manufacturer will handle all warranty issues directly.

There is no warranty on high-performance or race-related parts due to the nature of usage.

No payment or reimbursement shall be made for installation, removal, transportation, or other charges. The remedies outlined in this instrument are exclusive and the liability of RalliTEK with respect to any sale shall not exceed the price of the product on which the liability is based.

EXCEPT AS STATED OTHERWISE IN THIS WARRANTY, RalliTEK MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. RalliTEK shall not, in any case, be liable for special, incidental, consequential, indirect, or other similar damages arising from any breach of these warranties even if RalliTEK or its agent has been advised of the possibility of such damages. Some states do not allow the exclusion or limitation of incidental or consequential damages so the above limitation or exclusion may not apply to you. This warranty is governed by the laws of the State of Oregon.

Installation Instructions

Applications

Subaru Impreza WRX STI Base - 2008
Subaru Impreza WRX STI Base - 2009
Subaru Impreza WRX STI Base - 2010
Subaru Impreza WRX STI Base - 2011
Subaru Impreza WRX STI Base - 2012
Subaru Impreza WRX STI Base - 2013
Subaru Impreza WRX STI Base - 2014
